Top 10 Mapper Hints

This guide is aimed at level designers who want to create their first Arcane Dimensions map and release it to the community.

It can be overwhelming at first when starting to map for Arcane Dimensions (AD) because of all the extra features and the wide selection of available monster and items. At the heart of AD is original Quake which means that any Original map can and will work fine. Start by creating a map with limited resources and a small foot print and then gradually add new AD features once the map is working.


1. Map Layout - Always start a project with a small map footprint
  • Levels will naturally grow in size over time, so always start small
  • Larger maps can be difficult to finish because they will require more testing
  • A small well planned map is better than a sprawling layout!
  • Plan secrets as you create the level and they will feel more natural
  • Design architectural spaces to compliment monster designs
  • Don't be afraid to move stuff to a temporary map if its not working right
  • Add plenty of environmental sounds (wind, water, lava, wood or metal)
  • Regularly seal and compile your map and test for scale and layout issues
  • Watch out for map, monster and light symmetry and try to break it!


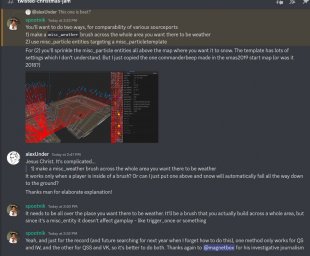

2. Features - AD has a very (very) large collection of features
  • Not every feature needs to exist in every single map!
  • Focus on certain features that compliment your map style and design
  • Hint at new features at the beginning, like showing low gravity


3. Breakables - Plan and Use Breakables in your AD map
  • Monsters will smash through breakables to get to the player
  • Always use a consistent design (visually cracked or broken)
  • Show the player what is breakable at the beginning
  • Breakables can use models like vase or pots to hide items
  • Always use the style key to define all the defaults


4. Monsters - Start with a small collection of monsters
  • Do not include every monster class in a single map!
  • Always pick a melee, range and flying monster type
  • Mix and match different types to create challenging encounters
  • Monster types often compliment each other in attack and movement
  • Create patrolling monsters to add movement and living spaces
  • Monsters cannot climb 32 map unit steps, however a player can!
  • All boss monsters require a special minion cache entity to be included in the map
  • Think about and plan for monster jump triggers, they are the ultimate player surprise!
  • Plan for Chaos mode (all vanilla monsters can be randomized)


5. Vertical Space - Build plenty of vertical spaces (for monsters)
  • Hunter Ogres (new armour versions) can aim up or down at the player
  • Create extra space for Gaunt and Gargoyles as they hover above the player
  • Vertical spaces can create emotional responses; low =oppression and high =safety
  • Use trigger_monsternojump to help jumping monsters to get through narrow spaces
  • Use trigger_monsterturret to force monsters to use range attacks like a turret
  • Use trigger_monstermovespeed to turn on/off monster turret abilities
  • Use trigger_monsterpassivestate to turn on/off passive monster behaviour


6. Developer Mode - Always test your map with developer mode 1 active
  • Enable developer mode by default in your quake.rc file or use a special config file
  • Look out for stationary yellow diamonds, they means an item or monster is broken!
  • Other colours; Blue =delay spawn, Green =nocount, red =nightmare, white =no zaware
  • All path corners are shown with direction and angle arrows to help show movement
  • Path corners with red arrows pointing up are dead ends or final destinations
  • Always check the console for error and warning messages (check red highlights)
  • Get other people or friends to test your map and record demos


7. Examples - Play all of the official AD test maps
  • The best documentation is a working example map!
  • All of the test maps are available to load into your editor
  • The fgd or def files do have lots of extra info about entities
  • The fgd or def files can be opened in any text editor
  • There are extra test maps specially designed for version 1.8.1


8. Skill Levels - Plan for higher skill levels like Nightmare and Evil
  • Nightmare skill (3) level can spawn extra monster or items
  • Nightmare+ monsters can attack more often and are faster projectiles
  • Consider placing extra cover for nightmare+ hitscan monsters
  • Evil skill (4) level always starts the player with the shadow axe
  • Use triggers to detect if the player has the shadow axe
  • Many monsters on evil skill can one shot kill a player!


9. More Rangers - Coop features available in AD
  • Use forward coop spawning points for larger maps
  • Items can be given or denied using extra coop entity keys
  • Plan for locked in arena encounters and coop player access
  • Many new impulse commands are available in quake.rc for testing coop


10. Map Setup - Worldspawn (map entity) has many new features
  • All AD maps should use no_item_offset = 1 (AD fgd or def default)
  • Define fog parameters on worldspawn if using fog triggers
  • Player weapons, ammo, armour and hp can be changed on start
  • Water alpha (liquids and portals) should be defined on worldspawn by default
  • Check particlemax limit is correct if using lots of particle effects
  • Store the compiler options (sun, dirt and bounce) on worldspawn


Attachments

  • mappers_worldspawn.png
    224.6 KB · Views: 8

Idolon

New member
Nov 4, 2022
4
16
3
Kansas City, USA
Could someone expand on this point?
  • Watch out for map, monster and light symmetry and try to break it!
I trust there is a good reason to do this, but I want to understand it more in depth so I can apply it correctly.


h4724

Administrator
Feb 16, 2022
40
96
18
Could someone expand on this point?

I trust there is a good reason to do this, but I want to understand it more in depth so I can apply it correctly.
Each kind of symmetry can harm the map in different ways, although it's important to recognise that it isn't inherently bad - You just have to consider the effect it has on the player. Symmetrical layouts can be confusing to navigate or boring to play because it results in repetitive areas and disorienting corridors, and symmetrical architecture+lighting can be more difficult to process visually. On the other hand, you can also use symmetry to indicate that two paths are equally important (e.g. e1m5 - Gloom Keep), or create a symmetrical facade as a memorable landmark. Monster symmetry results in equal pressure from multiple angles, which makes the player's quick decision-making less impactful. Something people often do is to build a symmetrical area and then break the symmetry with things like structural damage or crates - this can work on the level of layout or details.

Sock previously made a visual guide for lighting, including advice for breaking symmetry, which I've attached below. The main things to think about are leading the player with bright spots and making interesting shadows. You can have symmetrical architecture with asymmetric lighting by having broken lights, missing flames, or sporadic candles. Light styles can also do a lot to introduce asymmetry and otherwise make your lighting less repetitive.


sock

Member
Feb 24, 2022
24
93
13
Could someone expand on this point?

I trust there is a good reason to do this, but I want to understand it more in depth so I can apply it correctly.
Unfortunately we all love symmetry (faces, buildings and structures) and its something I find I have to consciously fight in order to prevent! The one piece of advice I was given while doing level design was "Symmetry is half a map". When someone creates symmetry they are halving the map opportunities for the player. It could be identical monster setups on either side of a room, copy/paste light setups which creates uniform ambience or identical routes which are confusing and make naviagation difficult.

There are many tricks to break symmetry, rotated (90 degrees) brushwork, different light levels or flickering styles and adding obstables or height variety to break up level design route flow.


SportsterV90

New member
Aug 11, 2022
10
6
3
Kneel and bow your heads, oh mortals! Listen to His words, for He is great and omnipotent! He who with his feet established himself in Sepulcher, and with His head reached heaven in Monstrosity, the Lord of Hordes and ogres, He whose name is written in fiery symbols in eternity and is pronounced Krampus, the One whose testament
www.moddb.com/mods/arcane-dimensions/downloads/ad-181-test-map-pack
And Scripture
www.moddb.com/mods/arcane-dimensions
we honor, Risen and brought good news to us!
Bless your disciples, O Almighty!


SportsterV90

New member
Aug 11, 2022
10
6
3
Hm.., seems to be it is need to explain my previous, some weird post. I'm really, really glad to see Sock's return, even by this way, because it is difficult to overestimate his contribution to development Quake Universe. As we regret sometime that only a few years have passed since the development, and we found source code was irretrievably lost. Therefore, it is very kind of him to provide comprehensive assistance, which simplifies our development. (Just look to dumptruck_ds – he's dev. tools contain manual at 139 pages!)

Whether we will see a continuation of Arcane Dimensions, who knows. Perhaps, quite symbolically, Sock left his sword in the stone in Grendels' Blade, waiting for a worthy successor who can take possession of this sword?

  • Like
Reactions: Fairweather

sock

Member
Feb 24, 2022
24
93
13
Hm.., seems to be it is need to explain my previous post.
I must confess I was not sure if you were being sarcastic, doing some special internet meme or genuinely glad to see me around this forum! My initial reaction was to delete my account and run to the hills, but it seems you are being genuine and not out to stalk me or something! In a strange sort of way I do understand your reaction, many years ago I finally got to talk (via IRC I think) to czg (I was a really big fan of his quake stuff) and I was so excited and thrilled with my first conversation that he has promptly ignored me ever since! oh well, lesson learned on my part I suppose! :)

AD documentation - The very early versions had all the documentation in a readme file and it was pages long. With every new release the file was got longer and longer and eventually I realized nobody was reading it, because I was being asked questions that were answered in the readme file. So I decided to create test maps instead, which I love because I always prefer to see stuff working rather than have to struggle with entity chains and key values. I spend ages creating test maps for all sorts of stuff, but I feel most people are missing them or not realizing what they are trying to show. I have tried setting up discord servers and web forums, but I did not get much interest. My only suggest left is if someone wants something explained or a test map showing a feature/idea, then post here (not sure which thread to be honest) and I can help that way.


alexUnder Ros

Active member
Jul 8, 2022
82
124
33
42
Moscow outskirts, Russia
www.artstation.com
It could be really cool if AD could continue evolving. Maybe not as a map pack, but as a mod base. There are really cool features that could be added. Like moving waters, allowing to flood / de-flood spaces. Or small needs. For example not so long ago I bounced into a problem that I can limit teleporter to a player, but I can't limit it to vice versa mobs only... etc. A lot of things could be done. Maybe not "a lot", but some 100%

Just talkin' to myself, no worries. Still workin' on giant solo AD map, plus whole episode on AD. So I am cool with AD, feels like home


sock

Member
Feb 24, 2022
24
93
13
It could be really cool if AD could continue evolving. Maybe not as a map pack, but as a mod base. There are really cool features that could be added. Like moving waters, allowing to flood / de-flood spaces. Or small needs. For example not so long ago I bounced into a problem that I can limit teleporter to a player, but I can't limit it to vice versa mobs only... etc.
Every mod eventually dies off as new and better mods come along that capture the attention of the Quake community. It sorta becomes pointless updating a mod if everyone has moved on and there is nothing wrong with that, we should all embrace the new stuff.

The current community solution for moving water is terrible, its beyond terrible! If there was a feature that so desperately needs to be included into all Quake engines, it is moving liquid support. The current best solution is FTE engine using the skin parameter on moveable bmodels. Funny enough moving liquids is supported in AD, but its the FTE solution at the moment. Maybe if more people used it then other engines would support it. The current water hack only works for the player, ignores monsters and constantly fights the engine by changing the player's volume parameters. Use the FTE solution, its brillant!



alexUnder Ros

Active member
Jul 8, 2022
82
124
33
42
Moscow outskirts, Russia
www.artstation.com
You mean that moving waters can be made inside of engine forks like, for example, lightmapped waters have been added lately to all engines?

Every mod eventually dies off as new and better mods come along
True. I've seen that in different games communities. But! AD is still out of competition for mediaval dark fantasy theme. Objectively. And new invaluable mobs is just a part of fun. Remade hp flasks & ammo are even more valuable in my opinion. With them only medieval mood feels complete, at least imo


sock

Member
Feb 24, 2022
24
93
13
You mean that moving waters can be made inside of engine forks like, for example, lightmapped waters have been added lately to all engines?
Sure, FTE has a crazy amount of features. I just wish the interface was easier, so confusing :(
AD even has support for the FTE skin ladder setup. Probably another feature that should be engine based.
